POWER ANALYSIS SOFTWARE (PAS)

PAS’s versatility stems from its numerous features

Power Analysis Software (PAS) is SATEC’s comprehensive analysis and engineering software designed to program and monitor all SATEC devices. It includes a variety of additional tools to assist in system setup, such as the communication debugging module.

PAS is bundled with all SATEC instruments at no extra charge.

If you require assistance or guidance in regards to our Power Analysis Software (PAS), please email us or call SATEC on +61 2 4774 2959

PAS – FULL DOWNLOAD (21.87MB)
PAS – INSTALLATION MANUAL
VIEW THE PAS GETTING STARTED GUIDE

Automatic power quality reports

Power quality reports for EN50160, IEEE1159, GOST 13109 and GOST 32144-2013.

Wide range of communication platforms

RS standard serial lines, TCP/IP over cellular communication, USB, Telephone/Modem

Comprehensive analysis

Data logs, trends, harmonics, waveforms and much more.

Easy Export

Easy export to spreadsheet, Word, Excel or database

Power Analysis Software (PAS)

Power Analysis Software (PAS) Features

  • Automatic power quality reports for EN50160 & IEEE 1159
  • Automatic polling of devices
  • Simple off-line instrument setup
  • Direct data access for status monitoring or analysis
  • Wide range of communication platforms:
    • RS standard serial lines
    • TCP/IP
    • USB
    • Telephone/Modem
  • Self-test
  • Easy export to spreadsheet, Word, Excel or database
  • Extensive graphic and report capabilities for waveforms, harmonics & billing
  • Export COMTRADE (IEEE standard common format for transient data exchange)
    • Export PQ

PAS Datasheet
PAS Installation Manual
PAS EN50160 Automatic Reports

Sophisticated analysis:

  • Data logs—historical or current
  • Trends—individual or 3 phases together

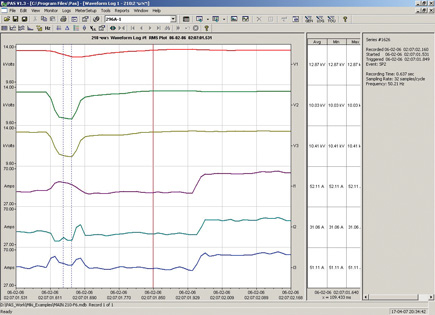

  • Trend over time data log or waveform
  • Trend based on user-selected parameters or limits
  • Harmonic spectrum
  • Harmonics power direction
  • EN50160 comparison tables for HV and LV applications
  • G5/4 comparison tables for HV and LV applications
  • Vector analysis/phasor diagram
  • Automatic power quality and fault categorization
  • Waveform comparison between sites
  • ITI (CBEMA) curve
  • Automatic sort and filter capabilities
  • Uploading TOU settings
  • Uploading with variable setpoints
  • Alarms with variable setpoints
  • Delta measurement
